Drum Loading (GEMCOMATIC)

GEMCOMATIC Drum Loading Systems

Rapid Loading: The control system quickly brings the drum tray to the inverted position, slows to open the valve, discharge the contents of the drum into the vessel, closes the valve, then speeds up to quickly return the vessel to the upright position, then stops, ready for the next drum.

The GEMCOMATIC Drum Loading System dramatically reduces vessel loading time and operator downtime.

Gemcomatic Drum Loading & Unloading Systems
Gemcomatic Drum Loading & Unloading Systems

GEMCOMATIC Material Handling System Features

As a one-floor, one-person operation, the GEMCOMATIC eliminates second-floor mezzanine or platform expenditures, additional material handling costs, and saves processing time. A typical GEMCOMATIC system will discharge a drum in just 90 seconds and fill one in less than 60 seconds. This means fast throughput and greater processing efficiency. The blender spends more time blending and less time loading and unloading.


Standard Features

  • Fully Automatic “One-Button” Load and Discharge
  • Field Proven – Hundreds of Installations
  • Fast Loading (under 90 seconds) and Discharging (under 60 seconds per drum)
  • Accommodates any Drum Weight to 1600 Pounds
  • Accommodates any Standard or Odd Size Shipping Drums (Metal, Plastic or Fiberpak) from 26 to 35” High and 18 to 24” Diameter
  • Pneumatically Operated Drum Roller Tray Lift Assembly
  • Pre-Wired with Safety Interlocks

Optional Features

  • Tray Vibrators for Poor Flowing Materials
  • Bag Dumping Package
  • Full Sanitary Package Available
  • Bag Guard Design
  • Drum Weigh Off
  • Two-hand Safety Controls

GEMCOMATIC Material Handling System in Action

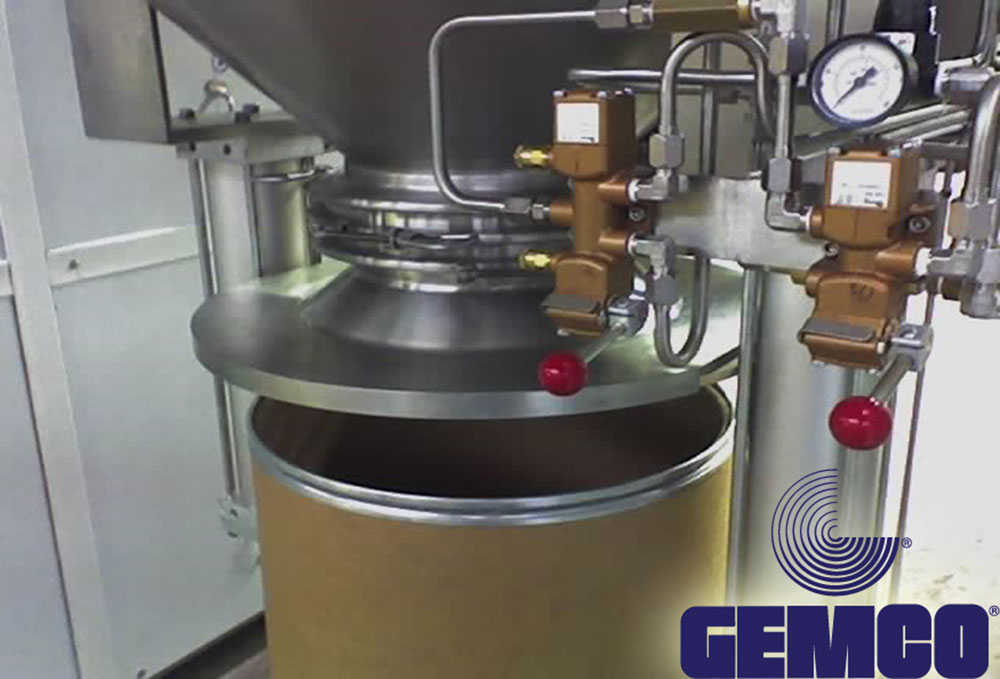

GEMCOMATIC drum loading and unloading system allows a single person to efficiently load and unload materials from any of our mixers or dryers. Our GEMCOMATIC material handling system creates airtight seals at the drum rim to ensure there is no loss of materials during unloading or loading. Let GEMCO help optimize your material handling processes by integrating our drum loading system into your workflow.

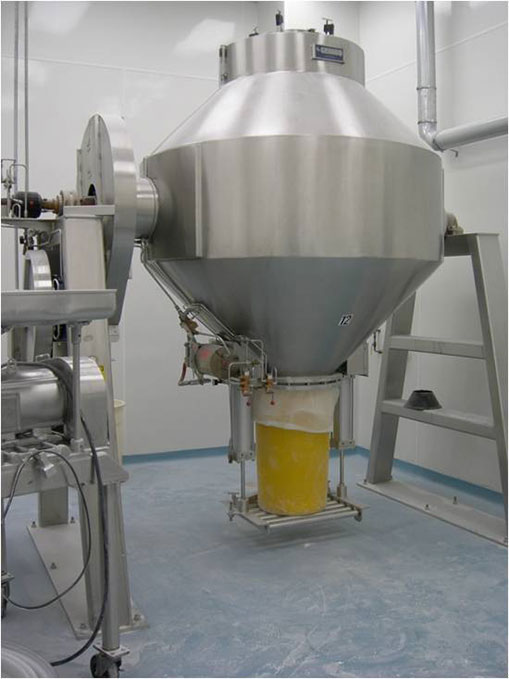

GEMCOMATIC material handling drum loading process

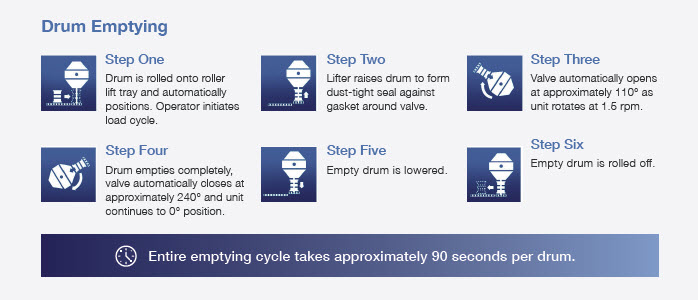

GEMCOMATIC material handling drum unloading process
